SM451
Hanwha SM451 SMT pick & place machine, proven multi-functional placer for 0402 chips up to large ICs and long connectors. Refurbished units available for PCB assembly lines.

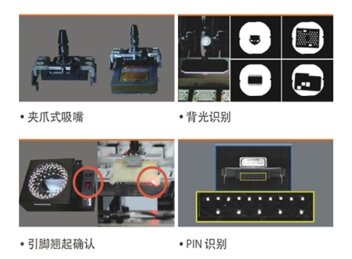

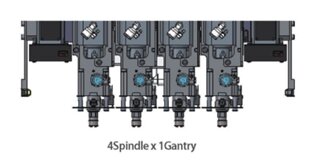

Hanwha SM451 pick and place machine is built on the reliable SM421 platform, equipped with high-precision pressure control heads for versatile mounting tasks. Adopting X-Y axis linear scales, it greatly improves placement accuracy. It supports components from tiny 0402 chips, QFP (4,000 CPH, IPC9850), up to 57×42mm ICs, long connectors, bare chips and PiP components. It can handle components with maximum height of 28mm, compatible with gripper nozzles for POP packages. Functions including pin warp detection and backside reflection inspection are available to achieve reliable mounting of special components.
Key Features
Optimal chip speed: 8500 CPH
Supported component size: 0402 ~ Max.57×42mm (h28mm)
Placement accuracy: ±50μm@±3σ/Chip, ±25μm@±3σ/QFP
PCB dimension: L460×W420×1Lane (Standard)
Supports PiP, POP packages and odd-form component inspection
