SM481PLUS
Hanwha SM481PLUS flexible pick and place machine balances speed and versatility, suitable for general PCB assembly with mixed small and medium components, optional long board support up to 1500mm.
Hanwha SM481PLUS is a popular flexible placer balancing speed and component compatibility. It adopts single gantry 10-nozzle high speed head and flying vision system. It handles a wide range of standard SMD parts, ideal for general consumer electronics and medium volume PCBA production. The machine supports PCB length up to 1500mm as an optional configuration. Fast product changeover reduces downtime between different PCB jobs and delivers proven reliability for electronics factories worldwide.
Key Features
Optimal Placement Speed: 40,000 CPH

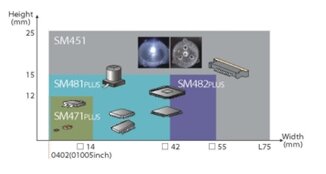

Supported Component: 01005 ~ □42mm, Max height h15mm
Placement Accuracy: ±40μm@±3σ/Chip, ±30μm@±3σ/QFP
PCB Size: Standard up to L510×W460, Optional long board up to L1500mm

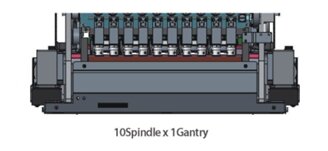

Configuration: 10 Spindle ×1 Gantry
Fast recipe changeover for mixed PCB production
