SM482PLUS

Hanwha SM482PLUS multi-functional placer is built for accurate placement of ICs, QFP, connectors and medium-sized components. The polygon component recognition function supports complex shape parts. It is equipped with dual vision system: flying camera + stage fixed camera, to ensure stable high-precision alignment. It can process components up to □55mm and maximum height 25mm, widely used in automotive, power supply and control board manufacturing.

Key Features

• Optimal Placement Speed: 30,000 CPH

• Supported Component: 0402 ~ □55mm, Max height h25mm

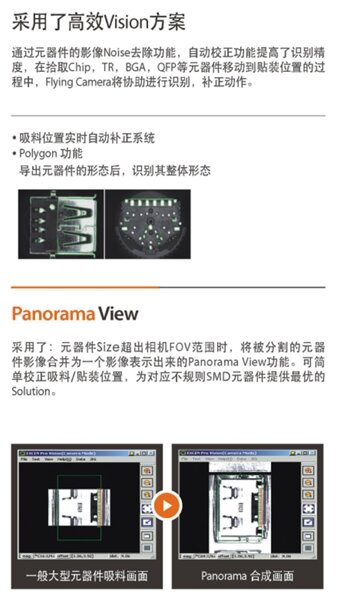

• Dual Vision: Flying Camera + Stage Fixed Camera

• PCB Size: Max L1200 × W510mm

• Polygon recognition for irregular & complex components

• High precision mounting for QFP, IC and connectors
