SM471PLUS
Hanwha SM471PLUS high speed chip shooter for mass SMT production. Optimized for tiny chip components like 01005, up to 14mm ICs, max speed 78,000 CPH for large volume PCB assembly.
Hanwha SM471PLUS is a high-speed chip shooter, equipped with 10 Spindle/Head, 2 Gantry and New Flying Vision system. It reaches an optimal placement speed of 78,000 CPH, delivering outstanding placement speed and stable consistency for mass electronics manufacturing. It supports components from 0402(01005inch) up to □14mm IC with maximum height 12mm. Adopting high-speed & high-precision electric feeders, it improves actual throughput and mounting quality. The 2Gantry Dual Lane structure maximizes production capacity and supports multiple mounting modes: Join Mode, Single Mode and Twin Mode. Dual Lane Shuttle Conveyor maximizes productivity for small PCBs while maintaining compatibility for large size boards. If one mounting head fails or feeder runs out of components, the other head can continue operation without machine stop.
Key Features
Optimal Placement Speed: 78,000 CPH
Supported Component: 0402(01005inch) ~ □14mm, Max height h12mm
Placement Accuracy: ±40μm@±3σ/Chip, ±50μm@±3σ/QFP
PCB Size: L510×W460 (Standard), L610×W460 (Option)

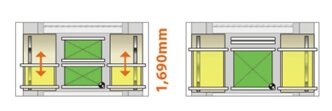

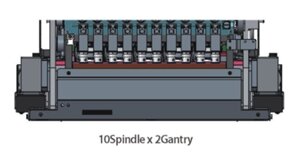

Configuration: 10 Spindle × 2 Gantry with New Flying Vision
Multi production modes: Join / Single / Twin Mode
Dual Lane Shuttle Conveyor for flexible PCB production
