US-LX3
ESE US-LX3 stencil printer supports PCB up to 1300×650mm, for LED display panels and long substrate SMT manufacturing.

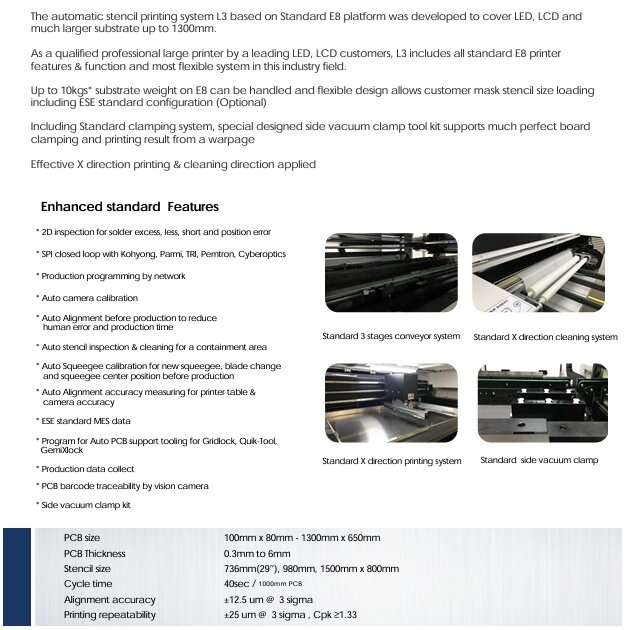

US-LX3 is the mid-range large-format printer of LX series, capable to handle PCB up to 1300 × 650 mm. It retains all core mechanical and functional advantages of LX1, with upgraded linear motion system to ensure stable movement during long stroke printing.
The side vacuum clamping tool is standard optional, which solves the printing problem of bent LED panels. It supports stencil frame up to 1500×800 mm. Alignment accuracy ±12.5 μm @6-sigma, printing repeatability ±25 μm @6-sigma, Cpk≥2.0. Cycle time for 1300mm PCB is about 52 seconds.
Widely used in LED display module, large backlight panel and long power board production lines.
Key Features
Max PCB size up to 1300 × 650 mm
Upgraded linear motion system for long-stroke printing
Optional side vacuum clamping kit for warped panels
Full 2D solder paste inspection function
Compatible with extra large stencil frames
Main Specifications
Max PCB Size：1300 mm × 650 mm
PCB Thickness：0.3 ~ 6 mm
Substrate Max Weight：10 kg
Optimized Cycle Time：52 sec (for 1300mm PCB)
Alignment Accuracy：±12.5 μm @ 6‑sigma
Printing Repeatability：±25 μm @ 6‑sigma, Cpk ≥2.0
Stencil Frame Size：736 /980 /1300 /1500 ×800 mm
