ESE ES‑E8 stencil printer for extra‑large PCB up to 850×610 mm, 17‑sec cycle time, designed for LED and large‑panel SMT manufacturing.
ES‑E8 is professional extra‑large‑size automatic solder paste printer, built for maximum PCB dimension of 850 × 610 mm. Based on mature E‑series mechanical architecture, it features heavy‑duty rigid frame, 3‑stage conveyor and auto stencil loading & positioning.
Optimized cycle time is 17 seconds. Alignment accuracy ±12.5 μm @6‑sigma; printing repeatability ±25 μm @6‑sigma, Cmk≥2.0. It supports huge stencil frames up to 1050 × 850 mm, mainly applied for LED panels, large display module, extra‑long industrial PCBA production.

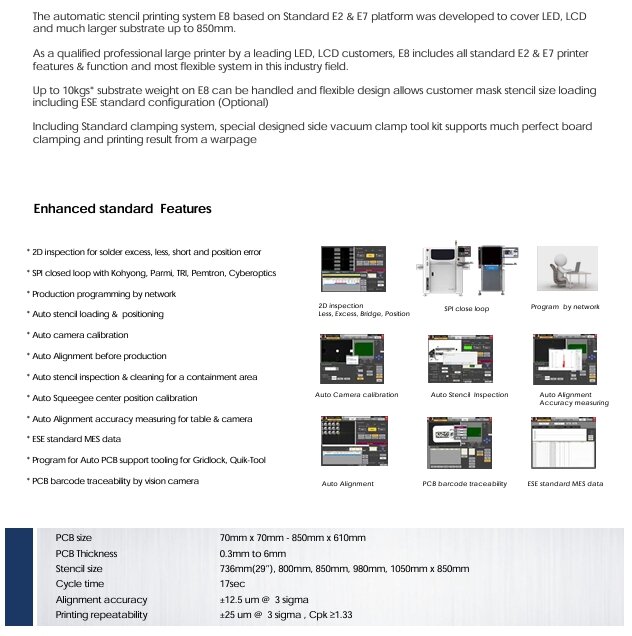

It retains full optional functions including multi‑mode stencil cleaning, squeegee auto‑calibration, 2D inspection, barcode & MES data management.
Key Features
Extra‑large PCB support up to 850 × 610 mm
Heavy‑duty stable mechanical platform for large substrate
Auto stencil loading & positioning
Standard 3‑stage inline conveyor system
Wet / Dry / Vacuum multi‑mode stencil cleaning
Main Specifications
Max PCB Size：850 mm × 610 mm
PCB Thickness：0.3 ~ 6 mm
Optimized Cycle Time：17 sec
Alignment Accuracy：±12.5 μm @ 6‑sigma
Printing Repeatability：±25 μm @ 6‑sigma, Cmk ≥2.0
Stencil Frame Size：736 / 800 / 850 / 980 / 1050×850 mm
