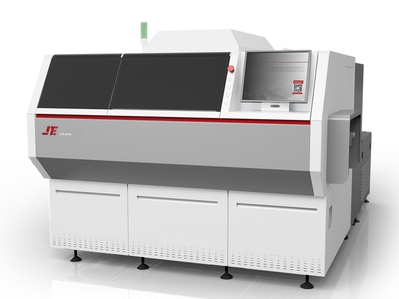

JE JTA-N500 Axial Inserter

JE JTA-N500 automatic axial inserter is the high-speed upgraded model of JE NAVIGATOR Series, built for high-volume DIP through-hole PCB assembly. It automates taped axial component feeding, lead cutting, forming and PCB insertion. It works for axial resistors, axial diodes and other taped axial parts. High-performance servo system guarantees stable and precise insertion. JTA-N500 supports up to 16 expandable feeder stations and faster insertion speed. It can be integrated into full DIP production line with wave soldering machines. Suitable for large batch production of automotive electronics and high-volume power supply PCBs.

Core Features

• High-speed upgraded model of JE NAVIGATOR series, up to 16 expandable feeder stations

• High-speed servo axial insertion, up to 3000 components per hour

• Handles taped axial components: axial resistor, axial diode

• All-in-one process: feeding, lead cutting, forming and PCB insertion

• Quick feeder replacement, minimal product switch downtime

• Touch screen control, storage of hundreds of production recipes

• Built-in missing part detection and jam alarm system

• Inline compatible with DIP conveyor and wave soldering machines

Specs Summary
